Medium Voltage Products

(HT Switchgear: 3.3kV - 36kV):

Indoor VCB Panel
Outdoor VCB Panel
Porcelain Clad Vacuum Circuit Breaker
Compact Substation (USS)

Low Voltage Products

LV Panels
PCC Panel
MCC Panel
DCDB/VFD Panel
E-House

Major Orders

Asian energy Anandha Project.
Universal MEP –Project Name: RWSS- Gurundia, Kuarmunda Lahunipada.
Trans Global Power Limited – Project: Ganesh Nagar & Maduravoyal.
L&T Construction – Patiala.
L&T Construction – Jalandhar.
GVPR - Nayagarh Project, RWSS Odisha.

ISO Certification

Services Offered

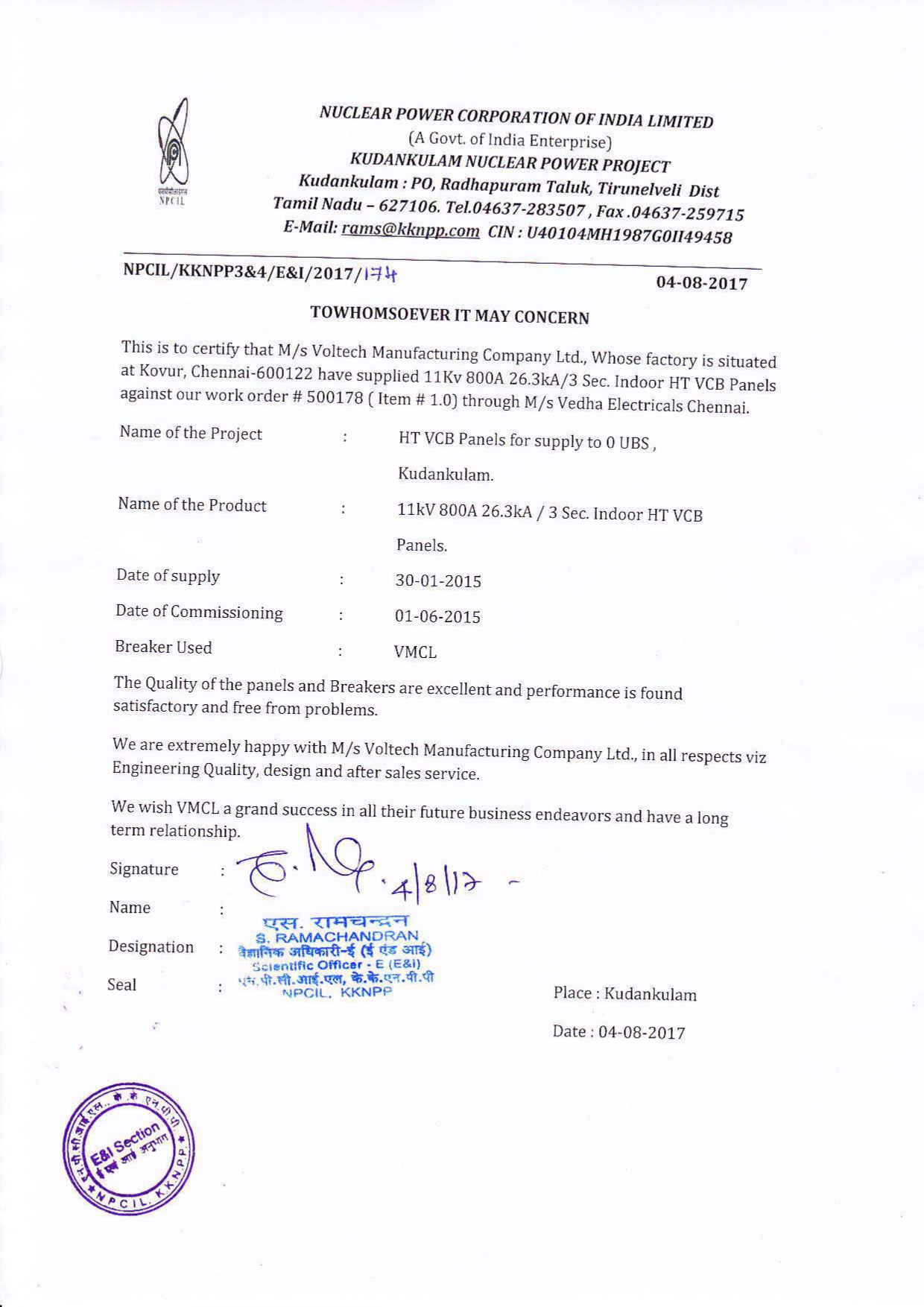

Range of Products SERVICE APPROVALS TYPE TEST CREDENTIALS

MEDIUM VOLTAGE PRODUCTS

HT Switchgear: (3.3kV - 36kV)

Indoor VCB Panel:

Product overview:

The legendary Indoor Vertical Isolation VCB is a preferred product in various Utilities & Indian Railways. The vertical isolation & horizontal draw-out truck ensures more ground space & provides higher degree of compactness than horizontal isolation trucks. The product comes with high rigidity & best in class control solutions.

Technical Details

Model No : 11KV: MV V12 I, 33kV : MV V36 I
Rated Voltage & Rated Current :12kV & 36kV, 630A up to 2000A
Frequency : 50Hz
Short Time Withstand Current And Duration: 26.3kA/3Sec
Insulation Level: 11kV : 28kV / 75kV Peak,33kV : 70kV / 170kV Peak
Closing / Tripping Coil Voltage: 24VDC to 220VDC
Spring Charge Mechanism: 230VAC
Breaker Standard: IEC 62271 – 100, IS13318
Degree of Protection: IP4X & 5X

Outdoor VCB Panel:

Product Overview

The KIOSK is specially designed for unmanned substations in the Outdoor distribution network. It is a standalone vacuum switchgear system with built in self-driven independent control supply for self-tripping & closing of CB. The product is well equipped for metering, control, protection & SCADA compatibility.

The product is available in two basic designs

Roof bushing type with incoming & outgoing through roof bushings (Rated Voltage: 12 & 36 kV)

Line up type with incoming through bottom, rear / side cable entry & outgoing through bus bar / cables (Rated Voltage:12 kV)

Technical Details

Model No : 11KV: MV V12 I,
Rated Voltage & Rated Current :12kV, 630A up to 2000A
Frequency : 50Hz
Short Time Withstand Current And Duration: 26.3kA/3Sec
Insulation Level: 11kV : 28kV / 75kV Peak,33kV : 70kV / 170kV Peak
Closing / Tripping Coil Voltage: 24VDC to 220VDC
Spring Charge Mechanism: 230VAC
Breaker Standard: IEC 62271 – 100, IS13318
Degree of Protection: IP4X & 5X

Product overview:

It is a highly sought product in the utilities distribution segment. The product is specially designed for outdoor application with rated voltage of 12 kV to 36 kV. Over the years, the product has undergone a frequent design improvement that brings you a sense of satisfaction over reliability & safety

Technical Details

Model No : MV V12 O, 33kV: MV V36 O
Rated Voltage & Rated Current :12kV, 630A up to 2000A
Frequency : 50Hz
Short Time Withstand Current And Duration: 26.3kA/3Sec
Insulation Level: 11kV : 28kV / 75kV Peak,33kV : 70kV / 170kV Peak
Closing / Tripping Coil Voltage: 24VDC to 220VDC
Spring Charge Mechanism: 230VAC
Breaker Standard: IEC 62271 – 100, IS13318
Degree of Protection: IP4X & 5X

Product overview:

Ring Main Unit can also be provided with two number Load Break Switch with one number tee-off Vacuum Circuit Breaker with protective devices. It is highly flexible unit used in a wide range of applications including distribution switchboards, transformer substations, ring distribution networks and HV Connections to industrial & commercial sites. The units are developed to suit customer requirements for connection, supply, protection and sectionalizing with remote operation.

Circuit Breaker:

The CB comprises of 3 vacuum interrupters, which have a fault-make, fault-break rating. Earthing of the outgoing cable is achieved by the use of CB in series with the off-load disconnector / selector switch.

Ring Switch Technical Details

These are fault-make load break switches utilizing a single break 3 position switches viz., ‘ON’, ‘OFF’ & ‘Earth’ functions.

Rated Voltage & Rated Current:12kV, 630A Up to 2000A
Rated Voltage & Rated Current :12kV, 630A up to 2000A
Frequency : 50Hz
Short Time Withstand Current And Duration: 26.3kA/3Sec
Insulation Level: 11kV : 28kV / 75kV Peak,33kV : 70kV / 170kV Peak
Closing / Tripping Coil Voltage: 24VDC to 220VDC
Spring Charge Mechanism: 230VAC
Breaker Standard: IEC 62271 – 100, IS13318
Degree of Protection: IP4X & 5X

Technical Details

Model No : MV V12 LBS
Rated Voltage & Rated Current:12kV, 630A Up to 2000A
Frequency : 50Hz
Short Time Withstand Current And Duration: 26.3kA/3Sec
Insulation Level: 28kV / 75kV Peak
Breaker Standard: IEC 60265/ IS 9920
Degree of Protection: IP4X & 5X

Technical Details

Model No : MV V12 OI
Rated Voltage & Rated Current:12kV, 630A Up to 2000A
Frequency : 50Hz
Insulation Level: 28kV / 75kV Peak
Breaker Standard: IS 9920

Product Overview

USS is a prefabricated secondary substation with the combination of minimum voltage & switchgear, low voltage switchgear, Distribution Transformer and associated components of metering and protection, all fitted in one compact unit in accordance to the standards.

Model No : USS V12 O
Rated Voltage & Rated Current: 12kV, 630A Up to 2000A
Frequency : 50Hz
IEC 62271-202, IEC 1330(1995) and IS 14786:2000 Standards
Breaker Standard: IS 9920

LOW VOLTAGE PRODUCTS

HT Switchgear: (3.3kV - 36kV)

Product Range

LV panels, MCC, PCC, APFC, VFD, SOFTSTARTER Panels & All types of Distribution boards

Standards

IEC-60439 Part 1&2, IS-8623 Part 1&2 with Customized design.

Fault level

UP TO 80kA with Al / Cu Bus bars

Ratings : From 630A to 6000A (Draw out / Fixed Type).
Construction : Single front, Single / Two Tier Arrangement.

Construction Single / Double Front, Draw-out / Fixed Type with Microprocessor based along with VFD, Softstarters advanced motor protection relays.
For wide range of motor ratings.

Construction: These products conform to the illustrated parameters of the industry. Our valued clients can avail this instrumentation panels in different technical specifications as per their requirement.

Features

User-friendly Operation
Minimum maintenance
Longer service life
Efficient performance

Technical Details

Construction: We manufacture Automatic Power Factor Control Panel to achieve unity/near unity power factor. The power factor controller of our APFC Panels monitors the reactive power which intern helps in saving energy.
In order to meet the diverse requirements of clients, we are offering a superior range of Soft Starter Panels. This range of soft starter panels is widely acclaimed among the clients for the following features

E-HOUSE

Applications

Voltech eHouse solutions are ideally suited for any project where there is a benefit to reduce on-site work, especially for more challenging project situations, where minimized installation time is desired, when qualified personnel and materials are not always readily available, or at locations facing challenging environmental conditions.
Such flexibility makes an Voltech eHouse ideal for applications in segments including data centers, rail, energy storage, renewable, power generation, oil and gas, mining and processing industries.

Solution features

Fully integrated system
Fully optimized, engineered, assembled and tested for rapid deployment
Mitigated client risk with Voltech taking responsibility for equipment selection.

MCC & PCC, HT & LT Panel refurbishment & overhauling
LT Bus duct refurbishment & overhauling
Refurbishment & Overhauling of VCB 11kV & 33kV Indoor & Outdoor
Overhauling & Service of Circuit Breaker on any make
Annual Maintenance service and Spare Materials supply

Sl.No.	Name Of the Customer & Details
1	South Bihar Power Distribution Company Limited
2	Government of Odisha, Mega Lift Projects
3	Hindustan Aeronautics Ltd.
4	TANTRANSCO
5	Neyveli Lignite Corporation Ltd
6	Government of India/Ministry of Defence CVRDE /Southern Railway CVRDE
7	National Mineral Development Corporation
8	Damodar Valley Corporation
9	KUIDFC – Karnataka Urban Infrastructure Development & Finance Corporation Ltd
10	KPTCL – Karnataka Power Transmission Corporation Limited

Type of test	Product	IEC Clause	Rating
Short time withstand current and Peak withstand current test & Basic Short Circuit test duty-T100s	HT Panel with VCB-Indoor	IEC:62271-100(2008)	12kV,630A,25kA,3Pole VCB with Panel
Basic Short Circuit test Duties - T60,T30 & T10	HT Panel with VCB-Indoor	IEC:62271-100(2008)	12kV,630A,25kA,3Pole VCB with Panel
Basic Short Circuit test Duty - T100a	HT Panel with VCB-Indoor	IEC:62271-100(2008)	12kV,630A,25kA,3Pole VCB with Panel
Basic Short Circuit test Duties - T60,T30 & T10	HT Panel with VCB-Indoor	IEC:62271-100(2008)	12kV,630A,25kA,3Pole VCB with Panel
Single Phase Test	HT Panel with VCB-Indoor	IEC 62271-100 (2008)	12kV,630A,25kA,3Pole VCB with Panel
6 Cable Charging Current Switching Test Duty - CC1, Cable Charging Current Switching Test Duty - CC2	HT Panel with VCB-Indoor	Clause 6.111.9 of IEC 62271-100 ed2.1, 2012	12kV,630A,25kA,3Pole VCB with Panel
Temperature Rise Test - 1250A	HT Panel with VCB-Indoor	(Clause 6.5), IEC 62271-200 :2011 & IEC 62271-100 :2012	12kV, 1250A, 25kA, 3Pole VCB with Panel
Mechanical Operation Test at ambient air temperature (M1 Class)	VCB Truck	Clause 6.101.2 of IEC 62271-100 ed2.1 (2012-09)	12kV,1250A,25kA,3Pole VCB
Lightning Impulse Voltage Test, Power Frequency Voltage Test	HT Panel with VCB-Indoor	(Clause-6.2.6.2), (Clause-6.2.6.1), IEC 62271-200 2011	12kV,1250A,25kA,3Pole VCB with Panel
Ingress Protection - 54	HT Panel with VCB	IEC 62271-200, Edition 2.0, 2011-10. i.e IP 54 Test Category 2, as per IEC 60529 Edition 2.2, 2013-08 Standard. Clause 11.5 and 13.4	12kV,1250A,25kA,3Pole VCB with Panel
Internal Arc Fault test on cable chamber	HT Panel With VCB - Indoor	(Clause - 6.106) IEC 62271-200, 2011	12kV, 1250A, 26.3kA, Indoor VCB Panel
Internal Arc Fault test on Busbar chamber.	HT Panel With VCB - Indoor	(Clause - 6.106) IEC 62271-200, 2011	12kV, 1250A, 26.3kA, Indoor VCB Panel
Short time withstand current and peak withstand current tests	HT Panel With VCB - Indoor	(Clause - 6.6), IEC : 62271-200: 2011	12kV, 1250A, Indoor VCB Panel
Short time withstand current and peak withstand current test on main circuit	HT Panel With VCB - Indoor	Clause 6.111.9.2.2 of IEC 62271-100,2008 with Amendment 1 of 2012.Amendment 2 of 2017	12kV,1250A,25kA, 3pole Indoor VCB with panel
Basic Short Circuit test duties - T100s	HT Panel With VCB - Indoor	Clause 6.106.4 of IEC 62271-100,2008 with Amendment 1 of 2012.Amendment 2 of 2017	12kV,1250A,25kA, 3pole Indoor VCB with panel
Capacitor bank current switching tests, test duty -1 (BC1) & test duty -2(BC2) (C1 Class)	HT Panel with VCB - Indoor	Clause 6.111.9.2.2 of IEC 62271-100,2008 with Amendment 1 of 2012.Amendment 2 of 2017	12kV,1250A,25kA, 3pole Indoor VCB with panel
Temperature rise test - 800 Amps (Aluminium Busbar - 80 x 10mm)	HT Panel with VCB - Indoor	IEC 62271 - 200: 2011 & IEC 62271 - 1:2017	6.6kV,800A,26.3kA VCB panel
Temperature rise test - 630 Amps (Copper Busbar - 40 x 10mm)	HT Panel with VCB - Indoor	IEC 62271 - 200: 2011	36kV,630A,26.3kA Indoor VCB Panel
Short time withstand current and peak withstand current test on main circuit	HT Panel With VCB - Indoor	Sub Clause - 6.6a, IEC - 62271-200: 2003	12kV 630A VCB panel
Temperature rise test - 2000A(Copper Busbar - 60x12mm)	HT Panel Without VCB – Indoor	As per customer's instructions	11kV, 2000 A HT PANEL
Temperature rise test (Copper Busbar - 50x10mm)	HT Panel With VCB - Indoor	IEC 62271 - 200: 2011	33kV 1250A HT PANEL
Ingress Protection - 54	LT Panel - Indoor / Outdoor (PDB Panel)	IP 54 Test as per IS/IEC 60947-1:2007 Standard. Clause C 13.4 i.e IP 54 Category 2 test as per IS/IEC 60529, Edition 2.1, 2001-02 standard. Clause 13.4.	IP54
Ingress Protection - 55	LT Panel - Indoor / Outdoor (PDB Panel)	IP 55 Test as per IS/IEC 60947-1:2007 Standard. Clause C 13.4 i.e IP 55 Category 2 test as per IS/IEC 60529, Edition 2.1, 2001-02 standard. Clause 13.4.	IP55
Short Circuit Withstand Test	LT Panel - Indoor	Sub-clause 8.2.3 of IS 8623 (Part 1):1993/IEC Pub 493-1 (1985) (Reaffirmed 2004)	RMS : 80kA/1Sec, Peak : 176kA/1Sec,6000A,415VAC
